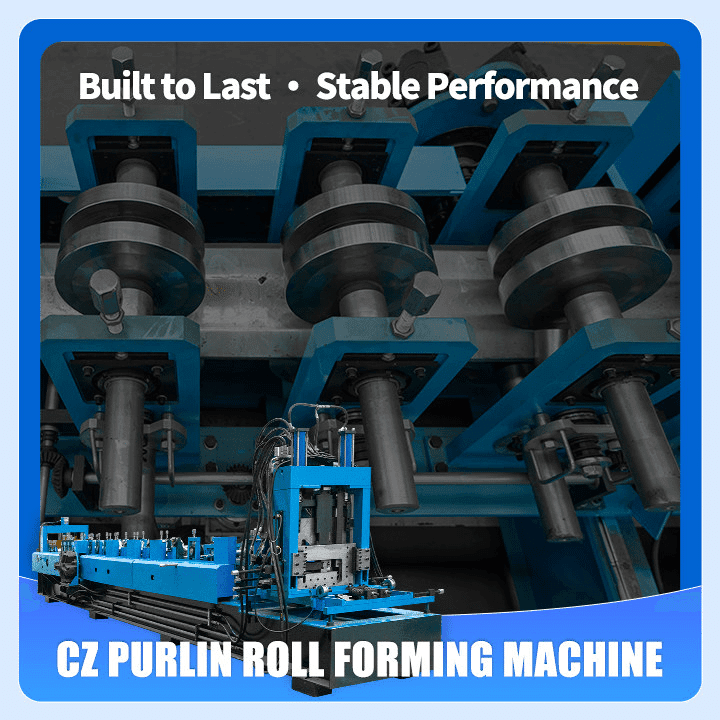

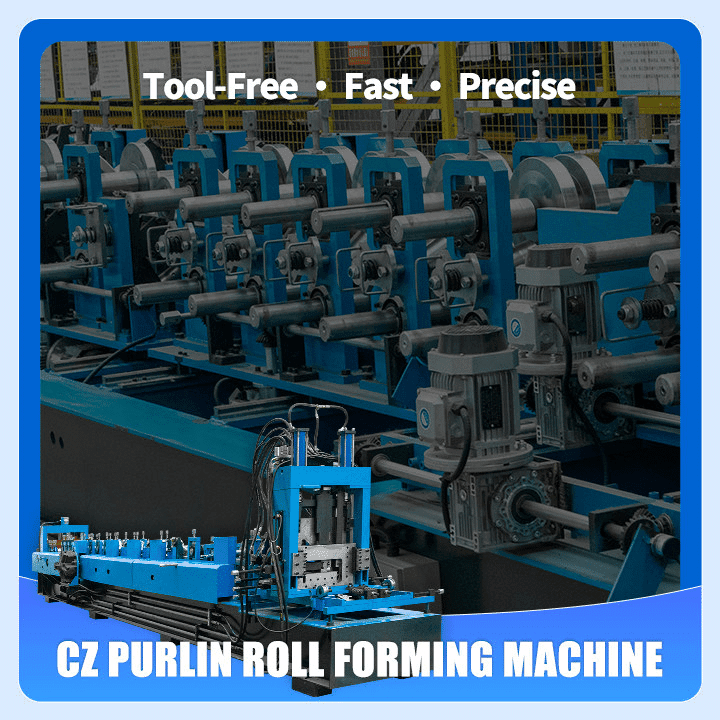

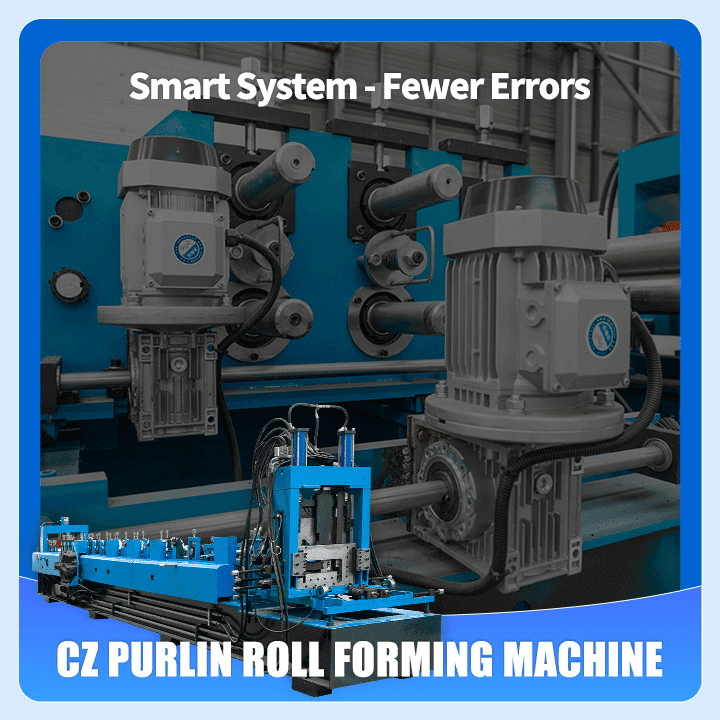

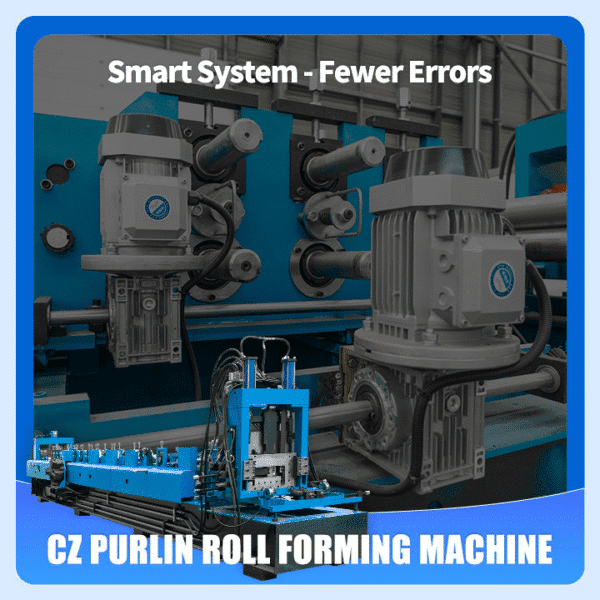

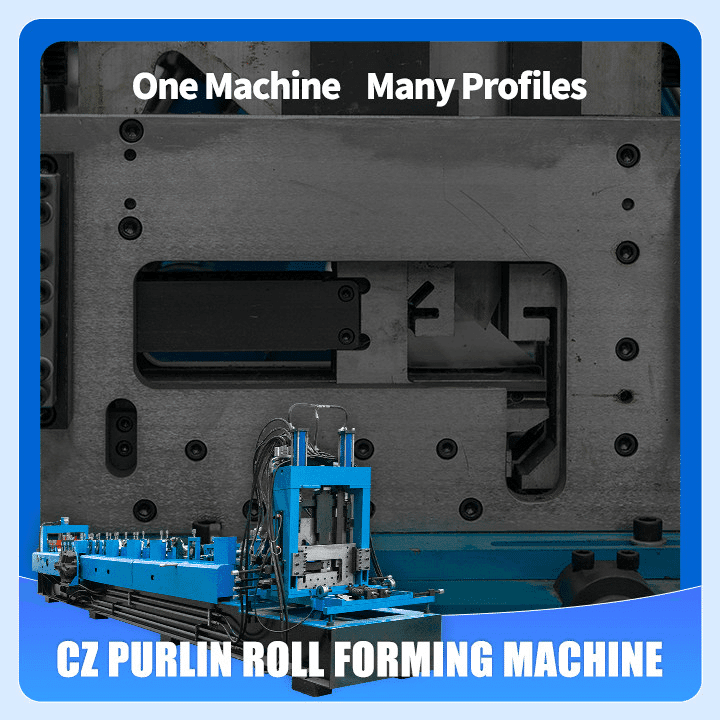

Our CZ purlin roll forming machine is designed to produce both C and Z shaped steel purlins with fast, automatic size change and profile switch. Ideal for modern steel structure projects, this machine offers high speed, precision, and easy control through PLC automation.
| Item | Specification |
| Material Thickness | 1.5–3.0 mm |
| Material Width | Maximum 500 mm |
| Forming Speed | 10–15 m/min |
| Number of Forming Stations | 16–20 stations |
| Cutting Method | Hydraulic shearing |
| Control System | PLC automatic control system |
| Equipment Dimensions | Approx. 12×1.5×1.5 m |
| Equipment Weight | Approx. 6–8 tons |
Provide competitive prices in the industry.
